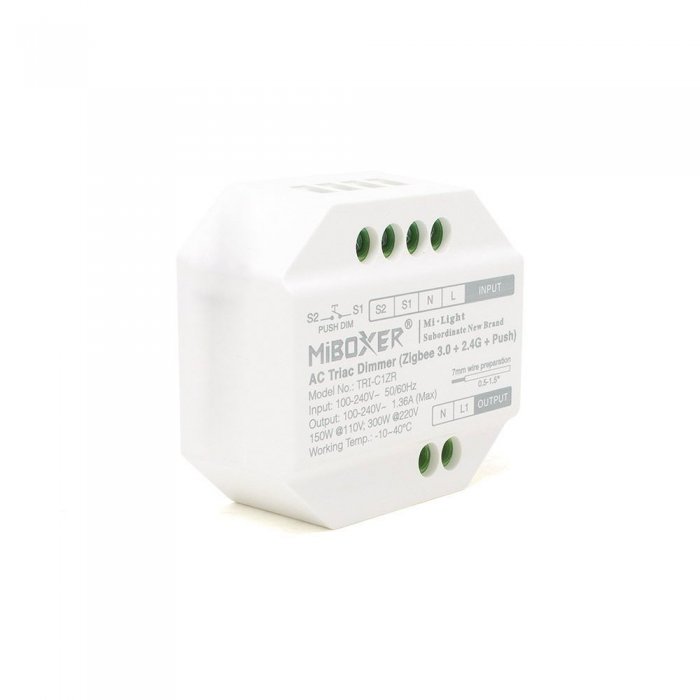

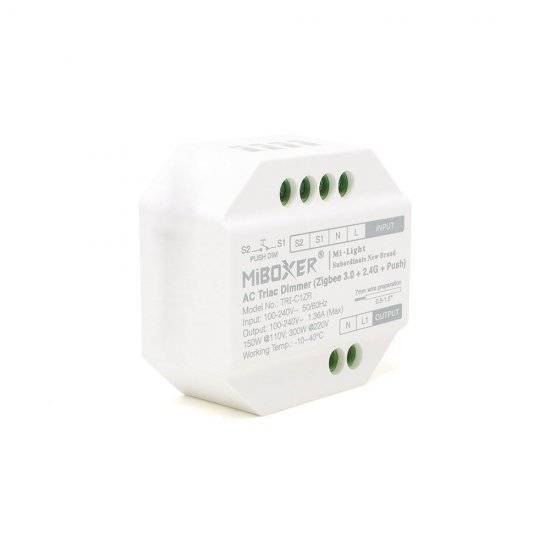

TRIC1ZR Mi-Light ZigBee TRIAC Dimmer

Price:   $86.95

  • Model: TRIC1ZR
  • Shipping Weight: 0.12kg
  • 20000 Units in Stock

(0 reviews)
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • means of transportation
    EMS,TNT,UPS,DHL,FEDX,HK AIR
  • Payment
    Paypal,Western Union
  • Email us
    Sales@ledstripbulbs.com
New Products
Mean Well LED Switching Power Supply - SP Series 100-320W Enclosed Power Supply with Built-in PFC - 12V DC
$54.95
Mean Well LED Switching Power Supply - SE Series 100-1000W Enclosed Power Supply - 12V DC
$29.95
Mean Well LED Switching Power Supply - SE Series 100-1000W Enclosed Power Supply - 24V DC
$29.95
Mean Well LED Switching Power Supply - SP Series 100-320W Enclosed LED Power Supply with Built-in PFC - 24V DC
$54.95
  • Details
  • Reviews
  • Tags
  • FAQ

The TRIC1ZR is a small TRIAC Dimmer that will switch and dim your mains powered lighting products up to 1.36A. It will work with filament, halogen or LED mains powered lighting products. The dimmer will work from ZigBee protocols so it can be linked to your smart home system. This will enable you to control your lighting products from anywhere in the world and it will enable you to set up routines such as switching on your outdoor floodlights when to get home in the evening or switching them off automatically when everyone leaves home in the morning.

The dimmer will also pair with the Mi-Light / Mi-Boxer 2.4GHz RF remote control handsets or wall panels and with the addition of PUSH dimmer connections it can be hard wired into a momentary push switch. When in 2.4GHz control mode the dimmer also features signal synchronisation which effectively forms a MESH network of 2.4GHz products passing the signal from unit to unit with no limit to the number of units that will work together wirelessly.

For further information about this and our other exciting range of lighting and control products please contact our technical sales team by phone, email or live chat and we will be pleased to advise you enabling you to get the best out of our products.



Technical Specification
Product Code:    TRIC1ZR
Product Packed:    Gift box
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    100V - 240V AC
Output Voltage:    100V - 240V AC
Output Current:    1.36A
Connectivity:    ZIGBEE protocols
Size:    L49mm x W49mm x H25mm
Dimmable:    No
Wireless Range:    Up to 100 metres
Max Bend:    Not Applicable
Operation Frequency:    Zigbee 3.0
Operating Temp:    -10 to 40ºC
