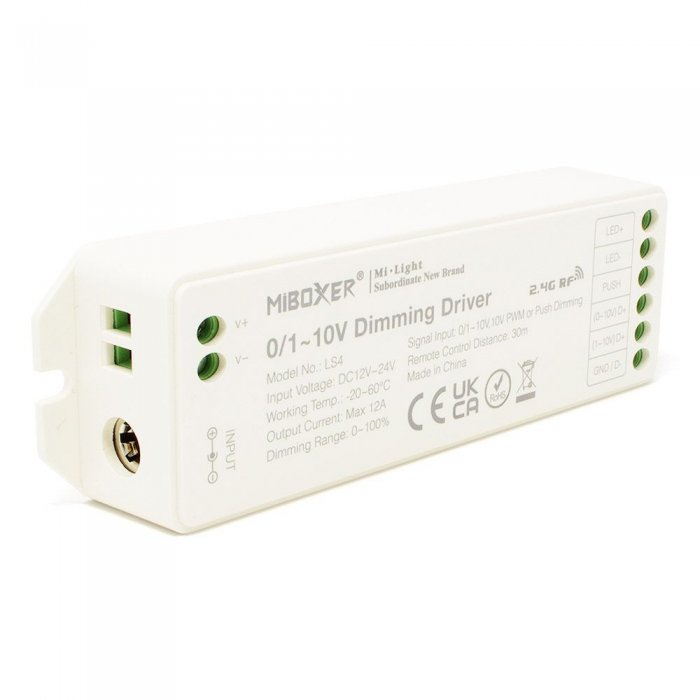

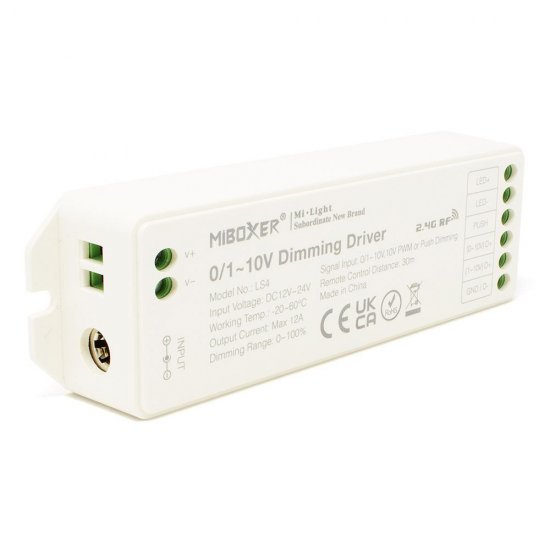

This compact single-channel dimmable LED driver is a stunning modern product from our Mi-Light range of LED Controllers. The unit is compact and easy to install wherever needed, measuring just L124mm x W38mm x H23mm.
The unit controls your single colour 12V or 24V LED products when paired to a compatible Mi-Light RF LED dimming remote control handset or wall panel on the 2.4GHz frequency.
In addition, there are hard-wired terminals for 0-10v, 1-10v and "push dimming control" inputs. Using any of these 0-10v control options will allow full smooth 0-10v dimming from 1-100% of your low voltage single colour LED lighting products.
Note: The 0-10v LED Controller is rated at a 12A Maximum load. A 12v or 24v DC (Direct Current) constant voltage input is required.
In addition, this smart wireless LED controller can be controlled from your phone with the free Mi-Light phone app. You can also control your LED lights with your voice using home automation devices such as Amazon Alexa or Google Assistant. This LED controller is the perfect addition to your smart home lighting system.
Note: Additional 2.4GHz hub required for these features.
All our 2.4GHz radio frequency LED receivers feature auto transmitting & synchronising functions. As long as the multiple controllers are all within 30m of each other, the multiple receivers in the group will sync together. No interconnecting control cables are needed.
It is also possible to control the following types of LED Strip lights / LED Tapes with this RF Receiver:
Single Colour / White LED Strip Lights
Compatible Mi-Light LED lighting and single colour LED controllers are sold separately.
For product assistance, please contact us by telephone, email, or online chat.
Technical Specification
Product Code: LS4
Product Packed Gift box
Product Type: Controller / Receiver
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 12V / 24V DC
Connectivity: 0-10v protocols
Size: L124mm x W38mm x H23mm
Dimmable: No
Wireless Range: Up to 30 metres
Transmitting Power: 6dBm
Operation Frequency: 2.4GHz
Operating Temp: -20~60°C
Total Output Max:12A
Output Max: 12A/Channel
