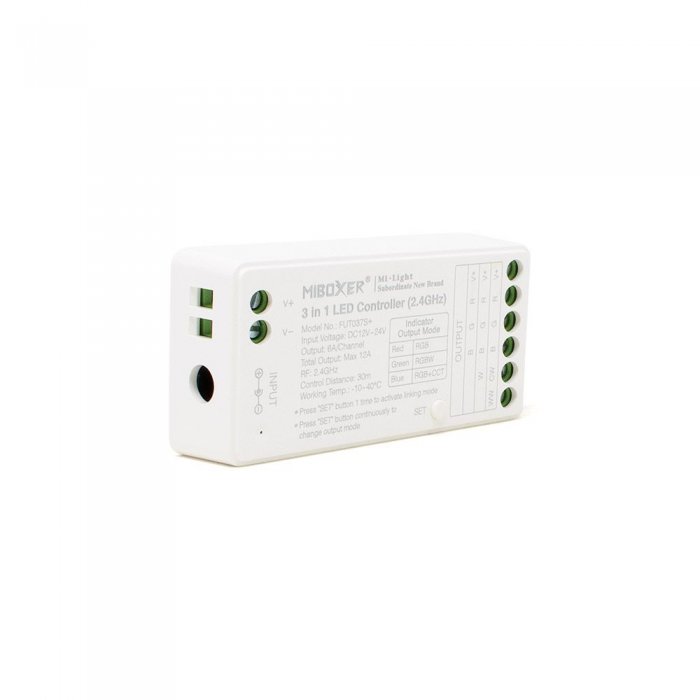

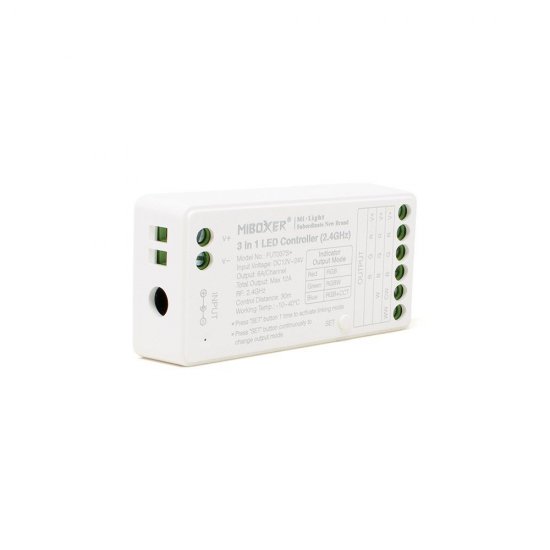

FUT037S-PLUS MiBoxer 2.4GHz 3 In 1 LED Controller

Price:   $69.95

  • Model: FUT037S-PLUS
  • Shipping Weight: 0.12kg
  • 20000 Units in Stock

(0 reviews)
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • means of transportation
    EMS,TNT,UPS,DHL,FEDX,HK AIR
  • Payment
    Paypal,Western Union
  • Email us
    Sales@ledstripbulbs.com
New Products
18 Gauge Wire - Two Conductor Power Wire - 18 AWG Power Wire - Per Foot
$0.29
22 Gauge Wire - Four Conductor RGB Power Wire - Per Foot
$0.85
22 Gauge Wire - Five Conductor RGB+W Power Wire - Per Foot
$0.99
PVC Insulated 22 Gauge Wire - Three Conductor Power Wire - 22 AWG - 3 Wire - Per Foot
$0.49
  • Details
  • Reviews
  • Tags
  • FAQ

This multi-featured 3 in 1, 2.4GHz RF receiver from Mi-Light can be controlled wirelessly using a compatible 2.4GHz Mi-Light & Mi-Boxer handsets or wall panel. Pairing and unpairing the handset or wall panel to the receiver is simple and quick.

The receiver / controller can easily be set to control three channel (RGB), four channel (RGBW) and five channel (RGB+CCT) 12v or 24v DC LED Strips. The set button on the receiver and associated indicator light will glow red to indicate RGB colour mode, green to indicate RGBW colour mode or blue to indicate RGB+CCT colour mode. An excellent feature of these products is the wireless synchronisation which enables multiple receivers to synchronise together wirelessly each forming a MESH network of products. There is no need to have all the receivers within 30m of the controller as the system forms a MESH network so the wireless signal will jump from receiver to receiver providing each unit is within 30m of the preceding receiver.

Note: Walls and other obstructions between the controller and the first receiver in the network or between each receiver may reduce this range.

These superb wireless receiver / controllers can be used for both commercial or domestic installations for 12v or 24v DC LED strips up to a maximum output of 6A / channel and the PWM frequcy can be adjsuted from 250Hz to 16KHz.

Other control options are available and the receiver can be paired with a smartphone application or by voice control through your smart speakers. Note: An additional gateway is required for this feature.

For more information on these or any of our Mi-Light / Mi-Boxer range of products please call our technical sales team or contact us by email or live chat on our website.



Technical Specification
Product Code:    FUT037S-PLUS
Product Packed:    Gift box
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
PWM Frequency:    250Hz / 16KHz Adjustable
Guarantee Period:    5 Years
Guarantee Info:    6 Years
Input Voltage:    12V / 24V DC
Output Voltage:    12V / 24V DC
Output Current:    6A / Channel
Connectivity:    RF
Size:    L74.5 x W36 x H17mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -10 to 40ºC
Total Output:    Max12A
Output Max:    6A/Channel
Smart Synchronisation:    Version 2.0
