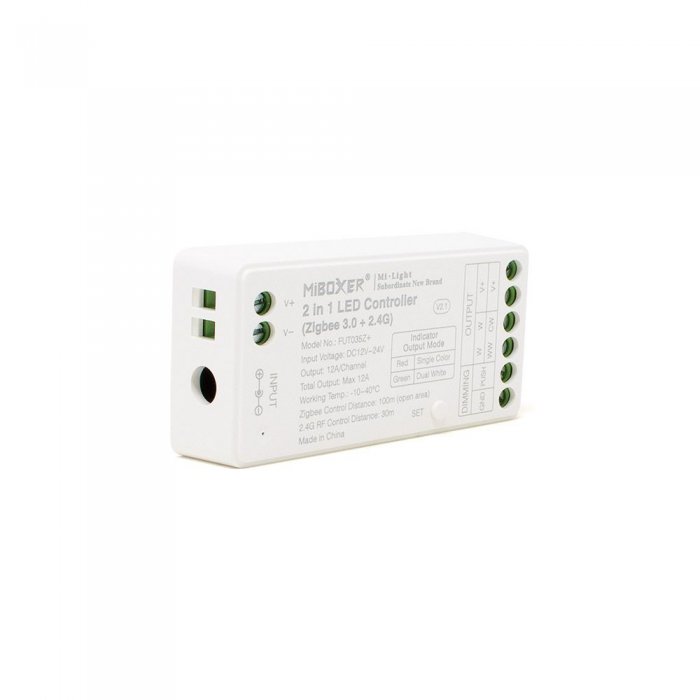

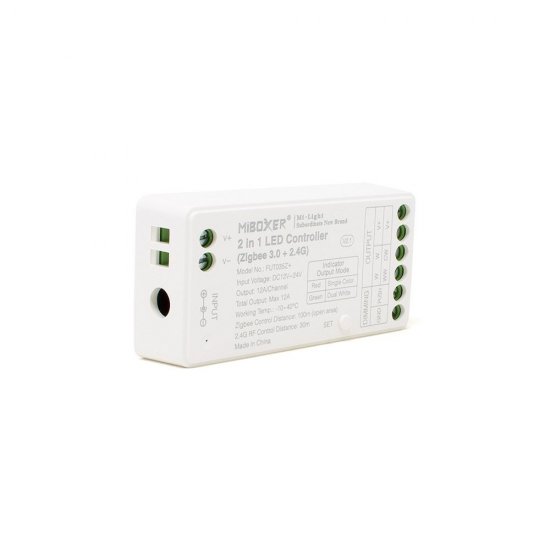

This multi-featured 2 in 1, 2.4GHz RF and ZIGBEE receiver from Mi-Light can be controlled wirelessly using a compatible 2.4GHz Mi-Light & Mi-Boxer handsets or wall panel. Pairing and unpairing the handset or wall panel to the receiver is simple and the receiver also features "Push Dimming" which will switch and dim your connected LED strips when a momentary push switch is wired to the receiver. The PWM frequency of the unit can also be set at either 16KHz or 250Hz helping to reduce flicker and banding when the product that it is controlling is photographed or videoed.
This receiver also works with ZigBee protocols and it is compatible with ZigBee gateways, the receiver can also be paired to your smart speaker if connected to a ZigBee gateway.
The receiver / controller can easily be set to control single colour LED strips or dual colour (CCT) LED strips at 12v or 24v DC, the set button on the receiver and associated indicator light will glow red to indicate single colour mode or green to indicate dual colour mode. An excellent feature of these products is the wireless synchronisation which enables multiple receivers to synchronise together wirelessly each forming a MESH network of products. There is no need to have all the receivers within 30m of the controller as the system forms a MESH network so the wireless signal will jump from receiver to receiver providing each unit is within 30m of the preceding receiver.
Note: Walls and other obstructions between the controller and the first receiver in the network or between each receiver may reduce this range.
These superb wireless receiver / controllers can be used for both commercial or domestic installations for 12v or 24v DC LED strips up to a maximum output of 12A.
Other control options are available and the receiver can be paired with a smartphone application or by voice control through your smart speakers. Note: An additional gateway is required for this feature.
For more information on these or any of our Mi-Light / Mi-Boxer range of products please call our technical sales team or contact us by email or live chat on our website.
Technical Specification
Product Code: FUT035Z-PLUS
Product Packed： Gift box
Product Type： Controller / Receiver
IP Rating： IP20 Non-Waterproof
PWM Frequency： 250Hz / 16KHz
Guarantee Period： 5 Years
Input Voltage： 12V / 24V DC
Output Voltage： 12V / 24V DC
Output Current： 12A Max output current
Connectivity： ZIGBEE protocols
Size： L74.5mm x W36mm x H17mm
Dimmable: No
Wireless Range： Up to 30 metres
Voltage Type： Constant Voltage
Transmitting Power： 6dBm
Operation Frequency： Zigbee 3.0
Operating Temp： -10 to 40ºC
Total Output： Max12A
Output Max： 12A/Channel
