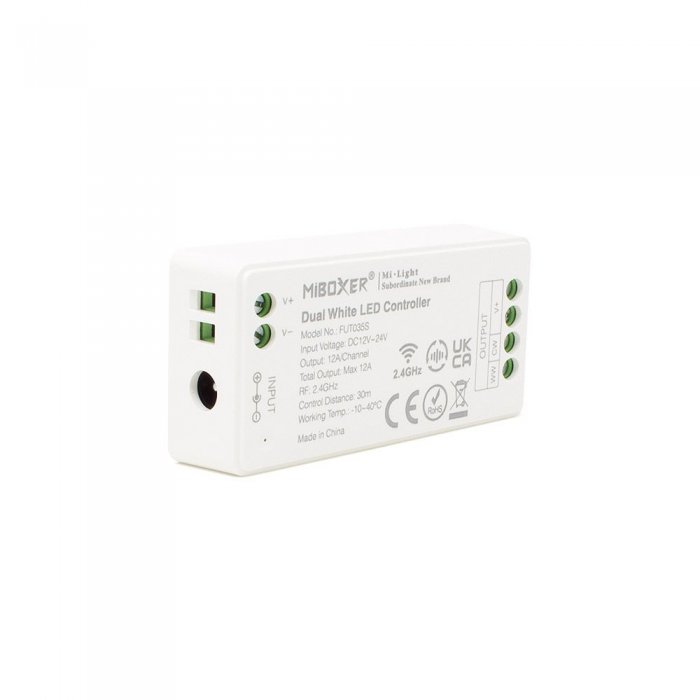

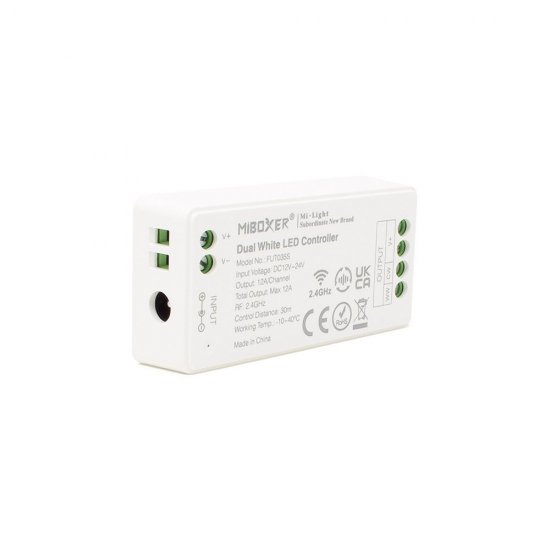

This high-quality Wireless RF LED Dual-Channel Receiver is from the Mi-Light range. It is compatible with 2.4G RF LED remote Controllers and Wall Panels. Control your low voltage adjustable colour temperature LED lighting products with ease.
In addition, this LED 2-channel receiver can also be paired with a smartphone application. They also support third-party voice control products such as smart speakers.
(Note: Additional Mi-Light WiFi hub required for these features).
All our 2.4GHz radio frequency receivers feature an auto transmitting & synchronising function. Multiple units can be paired to the same zone on the controller, providing they are all within 30m of each other.
The maximum load on this 2-channel transmitter-receiver is 12A (12A / Channel) and the PWM Frequency is 500Hz or 8KHz. This receiver requires an input voltage of AC100-240V.
Make sure your LED lighting is connected to a suitable power supply. Then simply wire the lights into your stylish LED two-channel receiver and enjoy full control over your LED lighting system.
For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.
Shop our range of LED Controls through our website or contact our technical sales team.
Technical Specification
Product Code: FUT035S
Product Packed： Gift box
Product Type： Controller / Receiver
IP Rating： IP20 Non-Waterproof
Guarantee Period： 5 Years
Input Voltage： 12V / 24V DC
Connectivity： RF
Size： L74.5 x W36 x H17mm
Dimmable: No
Wireless Range： Up to 30 metres
Transmitting Power： 6dBm
Operation Frequency： 2.4GHz
Operating Temp： -10 to 40ºC
Total Output： Max12A
Output Max： 12A/Channel
Smart Synchronisation： Version 2.0
