Specifications:
Voltage - 24v
Dimensions - 18mm Diameter
LED Type - SMD2835 in Epistar Chip
CRI - >80
Unit/Cut Length - 4.17cm
Max Running Length - 10m
LEDs per metre - 144
Power - 7.78W Per Metre
Lumens - 731lm Per Metre
IP Rating: Splashproof, subject to correct installation.
Bend Radius - 80mm
1 Year Guarantee for indoor Use - 6 Month Guarantee for Outdoor use
Not recommended for prolonged outdoor use

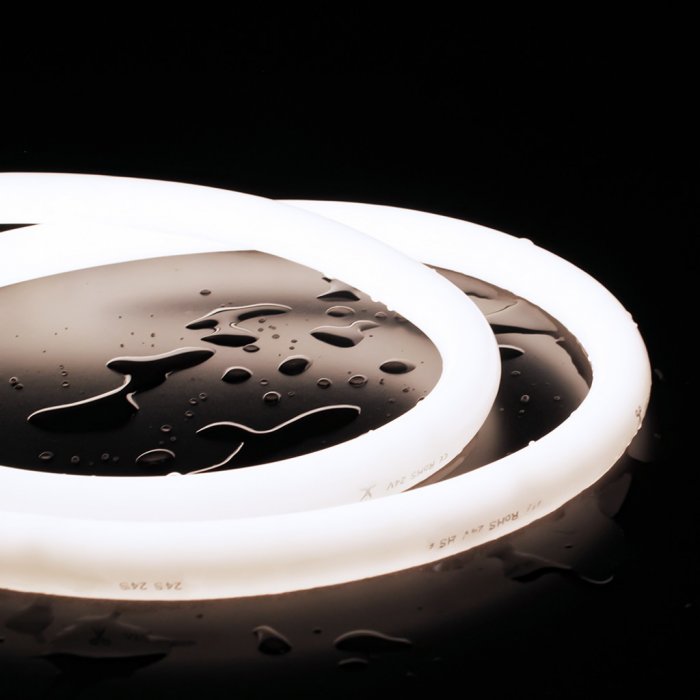

Our Circular Display Neon Flex offers flexible illumination in an 18mm diameter, making it perfect for perfect for single use display applications indoors and outdoors.
Fully diffused PVC ensures illumination for a durable lighting display.
Neon Flex looks better than glass neon - and it opens all the environments where fragile Glass Neon cannot be used. As the name suggests, it is highly flexible. LED Neon Flex can be bent to a minimum radius of 8 cm, and can be cut easily to your desired lengths with the use of 4.17cm cut points. Maximum Length at any time is 9 metres.
Please Note: A dark small dark spine will be visible along one side of the LED Neon Rope. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.
Important:
Splashproof is subject to correct installation. Heat shrink tube and silicone glue is essential to seal both the endcap and power cable in order to make the installation splashproof.
Dimming Compatibility
Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
Drivers and cabling are not covered by the splashproof rating and therefore must be housed indoors in a dry environment. splashproof rating applies to the Neon Flex only when correctly installed.
Please note that we are not able to offer refunds on custom cut lengths of Neon Flex, only for full 50m reels.
all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
Colour: 6000K Cool White
Voltage: 24V
Water Resistance: IP65
Impact Resistance: IK08
Watts Per Metre: 8.5Watts p/m
Amps Per Metre: 0.35 Amps p/m
Lumens Per Metre: 477 lm/m
CRI: >80
Length: Sold by the Metre
Width: 18mm
Bend Direction: 360 Bend
Max. Linear Run: 15 Metres
Cut Points: 83.33mm
Material: PVC
Min. Operating Temperature: -20°C
Max. Operating Temperature: 45°C
Guarantee: 1 Year Indoor, 6 Months Outdoor
