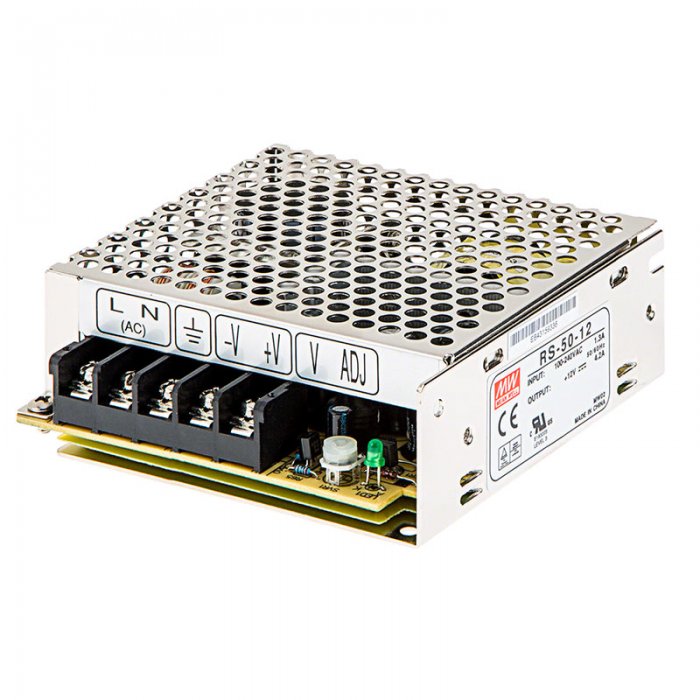

Mean Well LED Switching Power Supply - RS Series 50W Enclosed LED Power Supply - 12V DC

Price:   Starting at: $19.95

  • Model: RS-x-12
  • Shipping Weight: 0.45kg
  • 865 Units in Stock

(0 reviews)

Please Choose:

  • With Power Cord ( +$5.00 )
  • Without Power Cord
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • means of transportation
    EMS,TNT,UPS,DHL,FEDX,HK AIR
  • Payment
    Paypal,Western Union
  • Email us
    Sales@ledstripbulbs.com
New Products
75mm Wide Up/Down LED Aluminum Channel For Flexible Strip Lights Installations - LED Linear Lights - LS7535 Series
$34.95
PVC Insulated 24 Gauge Wire - Two Conductor Power Wire - 24 AWG - Per Foot
$0.39
55x75mm Pendant LED Profile Housing For Flexible LED Strip Lights Installations - LED Linear Pendant Lights - LS5575 Series
$34.95
SJT Power Cord - Black Jacketed 18/3 AWG Power Wire - 18 Gauge - Per Foot
$0.59
  • Details
  • Reviews
  • Tags
  • FAQ

* Universal AC Input Range
* Fully Enclosed Package measures only 3.90 x 3.82 x 1.42"
* Convection Cooled Operation
* Utilizes 105°C Long-Life Electrolytic Capacitors
* Withstand 300 VAC Surge input for up to 5 seconds
* High Reliability with an MTBF of >160K hours
* LED Indicator for power on
* 3 Year Warranty
* Made by Mean Well


Specifications:
Connection Type:    Screw Terminals
Dimming Control:     None
Dimmable:    No
Input Frequency Range:    47 ~ 63 Hz
Input Voltage:    88 ~ 264 VAC
Input Voltage DC:    125 ~ 373 VDC
Output Channels:    Single
Output Rated Current:    4200mA
Output Voltage DC:    12 VDC
Built-in PFC Function:    No
Power Supply Type:    Enclosed
Standards And Certifications:    RoHS Compliant, UL Recognized
UL Standard Number:    UL 60950-1
Volts:    12 VDC
Wattage:    50 Watts
