LED DMX 512 Decoder/RDM Controller - 8 Amp 3 Channel or 6 Amp 4 Channel

Price:   $39.95

  • Model: DMX-4CH-6A
  • Shipping Weight: 0.29kg
  • 895 Units in Stock

(0 reviews)
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • means of transportation
    EMS,TNT,UPS,DHL,FEDX,HK AIR
  • Payment
    Paypal,Western Union
  • Email us
    Sales@ledstripbulbs.com
New Products
14x68mm Recessed/Flush Wall Mount LED Strip Channel for Cove or Accent Lighting - Aisle - LG1468 Series
$29.95
16x16mm LED Strip Channel - Corner - LG1616 Series
$16.95
21x26mm Recessed Extrusions LED Strip Channel - LR2126 Series - Step
$19.95
30x30mm LED Strip Channel - Corner - LG3030 Series
$16.95
  • Details
  • Reviews
  • Tags
  • FAQ

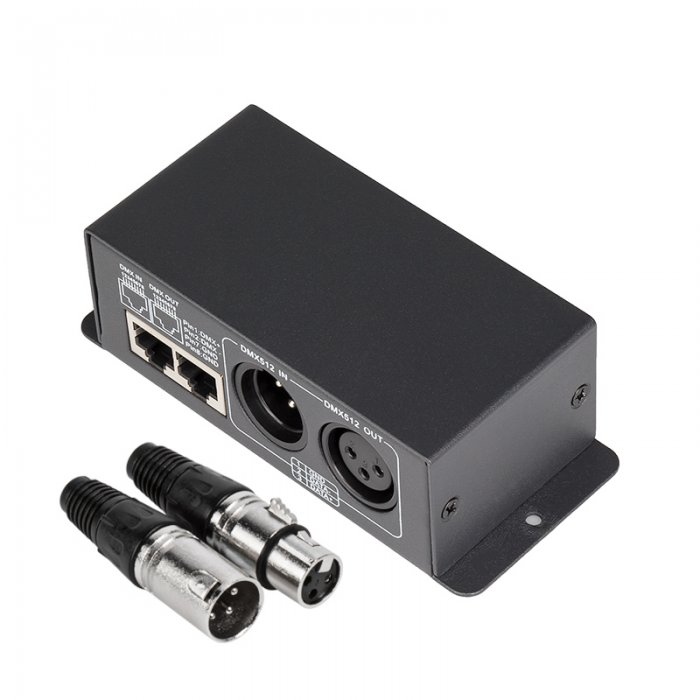

This DMX 512 decoder/RDM controller can control up to 4 different single-color 12-24 VDC LED products, any 1 RGBW LED light bar or strip, or 1 RGB strip along with 1 additional single-color product. The decoder can run in stand-alone mode using address code switches, under DMX512 digital control signals using XLR-3 or RJ45 DMX512 input/output interfaces, or in RDM mode using a device or computer with RDM software. The DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console. RDM mode allows 2-way communication between the controller and computer or smart devices. Meets RDM 2009 protocol. The decoder allows for 256 brightness levels. Maximum load is 8 amps per channel if using 3 channels or 6 amps per channel if using 4 channels. Includes male and female 3-pin XLR connectors.



Specifications:
Amps:    8 Amps
Amps Per Channel:    8 Amps/CH
Channels:    4 Channels
Connection Type:    Screw Terminals
Input Voltage:    12 VDC
Operating Temperature:    -20~+50 °C (-4~+122 °F)
Remote Control:    DMX
Special Features:    Custom Colors, Digital Display, RDM Protocol
Standards And Certifications:    CE
Volts:    12~24 VDC
Package Weight: 12oz (0.34kg)
Package Dimensions: 6" (15cm) x 2.5" (6cm) x 1.5" (4cm)
All specifications are subject to change without notice.
