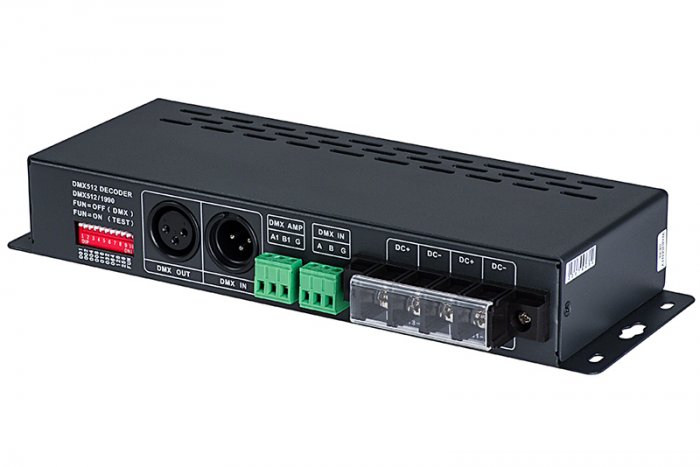

24 Channel LED DMX 512 Decoder

Price:   $249.95

  • Model: DMX-24CH-LV
  • Shipping Weight: 0.95kg
  • 895 Units in Stock

(0 reviews)
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • means of transportation
    EMS,TNT,UPS,DHL,FEDX,HK AIR
  • Payment
    Paypal,Western Union
  • Email us
    Sales@ledstripbulbs.com
New Products
Solderless Clamp-On Butt Connector - 10mm RGB LED Strip Lights
$0.99
4" Solderless Clamp-On Jumper Connector - 10mm RGB LED Strip Lights
$1.99
Solderless Clamp-On Pigtail Adaptor - 12mm Single Color LED Strip Lights - 4"
$1.49
Solderless Clamp-On L Connector for 10mm RGB LED Strip Lights
$1.99
  • Details
  • Reviews
  • Tags
  • FAQ

This 24 channel DMX512 decoder can control up to 24 different 12 VDC LED products or 8 RGB LED light bars or strips. The decoder is made to be compatible with any brand of DMX controller console and signaling rates and uses an 8-bit standard DMX transmission. Decoder can run in stand-alone mode using Address code switches or under DMX-512 digital control signals using XLR or RJ45 DMX-512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 16-bit gray scale output per channel. Maximum load is 3 amps per channel—72 Amps total.


Specifications:
Amps:    72 Amps
Amps Per Channel:    3 Amps/CH
Channels:    24 Channels
Connection Type:    Screw Terminals
Input Voltage DC:    5~24 VDC
Remote Control:    DMX
Special Features:    Custom Colors
Standards And Certifications:    RoHS Compliant
Volts:    5~24 VDC
Package Weight: 13.4oz (0.38kg)
Package Dimensions: 7.25" (18cm) x 2.76" (7cm) x 2.76" (7cm)
